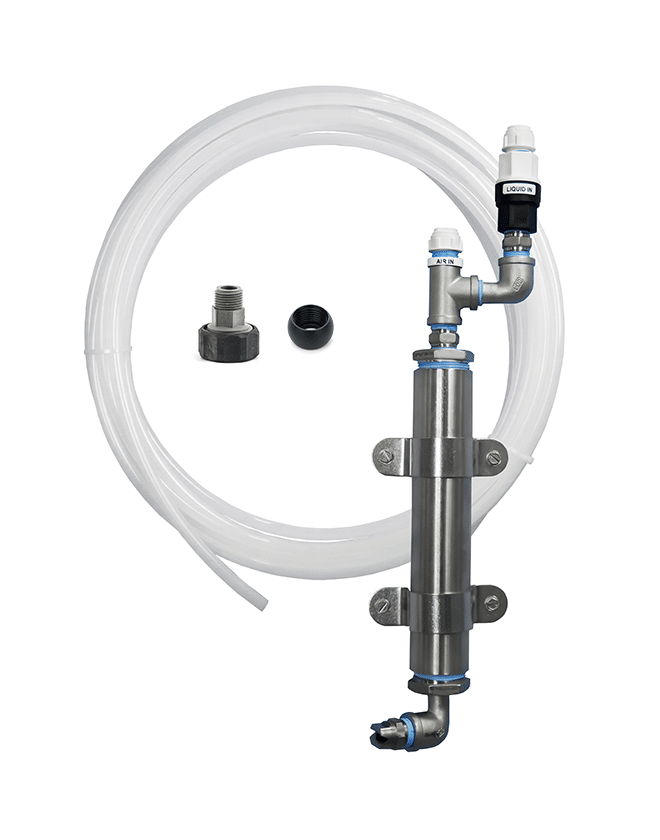

FOAMit Twin-Line Doorway Foam Nozzle Assembly (NZA-DS-TL-1)
- FREIGHTFlat-rate freight to the lower 48: $59.95 for this item on its own. Your rate shows at checkout before you pay. How it works →
- SHIPS WITHIN THE USUS warehouse to your door. No customs, no duties.
- DISTRIBUTOR SINCE 1994The equipment arm of ERE Inc.
- FLAT-RATE FREIGHT$59.95 on its own, lower 48 — shown at checkout
- EQUIPMENT SUPPORTCall 1-866-989-7489, 24/7
Product description
Durable stainless steel nozzle assembly compatible with GK5T, DS4, and DS5, delivering consistent, high-quality foam for doorway protection. power type: compressed air, electricity; chemical pickup type: draws from a concentrated product; dilution ratio range (water:chemical)*: 38:1 to 183:1.
Complete your setup
This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.
Why buy from Janitori
Janitori is located in Canada and sells commercial equipment to customers in the USA. More on how we operate →
Commercial & fleet orders
Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.
Questions, answered
How do I confirm this part fits my machine?
Match the manufacturer part number on this page against the parts manual published for your exact model and serial number. If the manual is not to hand, call the parts desk with the model and serial and we will confirm before you order.
Is this an OEM part?
The part number shown is the manufacturer part number for the machine listed. Contact us before ordering if you need the sourcing confirmed for a specific application.
When should a wear part be replaced?
Replace squeegee blades when the machine starts streaking or leaving water behind, brushes when the bristles are worn to the wear line, and filters on the interval in the operator manual. Running worn wear parts costs more in rework than the part does.
Can I order parts in bulk for a fleet?
Yes. Use the quote form with your machine models and quantities, and note any purchasing process your organization requires.
Product specifications
- Model
- NZA-DS-TL-1
- Power type
- compressed air, electricity
- Chemical pickup type
- draws from a concentrated product
- Dilution ratio range (water:chemical)*
- 38:1 to 183:1
- Number of products unit can draw from
- one product
- Suction line length/diameter
- 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
- Flow rate*
- 2 gal/min (7.6 l/min)
- Pump seals
- Santoprene, Viton, or Kalrez
- Timer operation type
- repeat cycle
- Coverage area
- one nozzle: up to 9×5 ft. (2.7×1.5 m) two nozzles: up to 8×4 ft. (2.4×1.2 m) at each nozzle three nozzles: up to 6×3 ft. (1.8×0.9 m) at each nozzle
- Fan tip
- one nozzle: ST80200SS two nozzles: ST80100SS three nozzles: ST8060-12SS
- Nozzle type
- twin-line stainless steel nozzle assembly (NZA-DS-TL-1)
- Number of nozzles
- one control box can support up to three nozzle assemblies
- Distance from nozzles to control box
- the combined distance between the control box and the nozzle(s) must equal 100 ft. (30.5 m) or less
- Tubing/fitting sizes
- Designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
