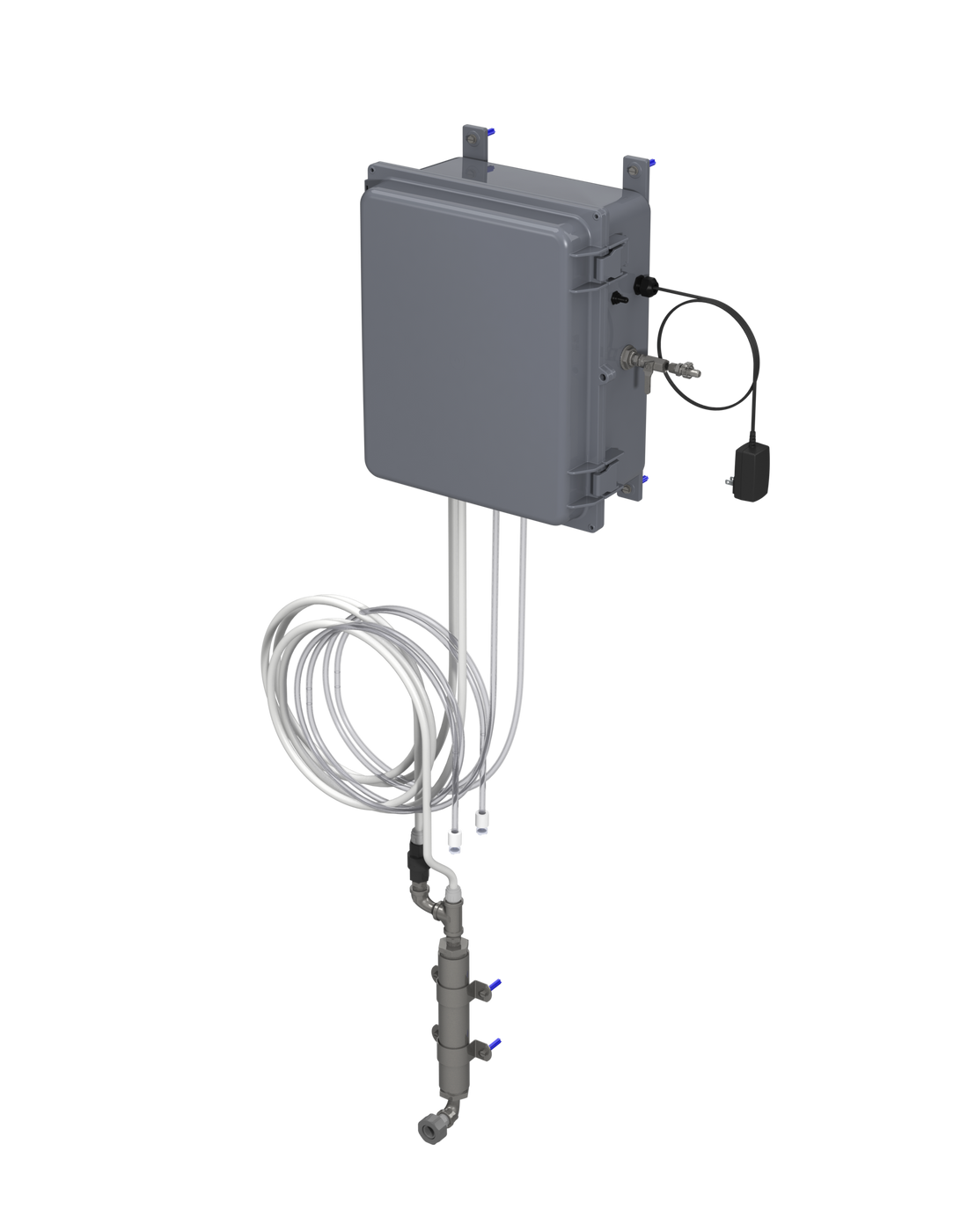

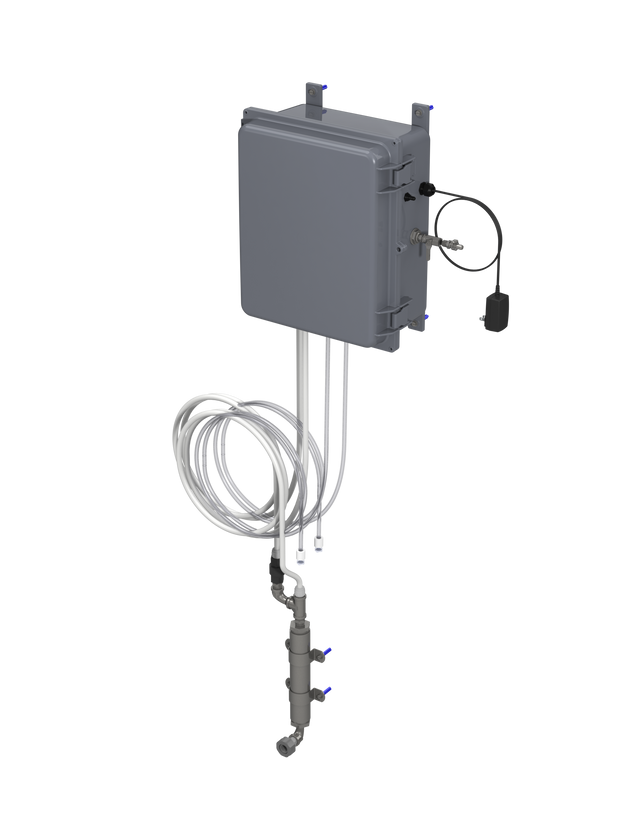

FOAMit 24V Twin-Line Concentrate Doorway Foam Unit for 2-Part Products DS-WC-2P-TL
- FREIGHTFlat-rate freight to the lower 48: $295 for this item on its own. Your rate shows at checkout before you pay. How it works →
- Damaged in transit
- We file the claim
- FOAMit warranty
- We open the claim PDF
- Lower price from a US seller
- We match it
- SHIPS WITHIN THE USUS warehouse to your door. No customs, no duties.
- DISTRIBUTOR SINCE 1994The equipment arm of ERE Inc.
- FLAT-RATE FREIGHT$295 on its own, lower 48 — shown at checkout
- EQUIPMENT SUPPORTCall 1-866-989-7489, 24/7
Product description
The 24V Twin-Line Concentrate Doorway Foam Unit is a wall-mounted system powered by air and electricity for applying two-part chemistries at entry points. It supports up to three twin-line nozzles across 100 feet and includes a repeat-cycle digital timer for consistent, automated coverage. This is a direct replacement for the DS4-2P.
- draws from two concentrated products simultaneously
- ideal for 2-part products that need to be mixed on the fly
- dilutes at ratios of 7:1 to 125:1 (water:chemical) for each product
- dilution rates can be independently controlled for each product
- quick-change pump
- supports up to 3 twin-line stainless steel nozzle assemblies
In the box
- Twin-line foam nozzle(s) with spray tip(s)
- Adjustable ball-type nozzle insert to hold spray tip
- Mounting hardware for control box and nozzle(s)
- Clear 1/2 in. tubing, 50 ft per nozzle
- Tee fittings
- User manual
As listed by FOAMit.
Field demonstration
Complete your setup
This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.
Replacement parts & consumables
Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.
Why buy from Janitori
Janitori is located in Canada and sells commercial equipment to customers in the USA. More on how we operate →
Commercial & fleet orders
Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.
Questions, answered
What training is required to run this machine?
Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.
How does freight delivery actually work?
You get tracking and carrier details by email when it leaves the warehouse. A machine that travels on a pallet is delivered by appointment: the carrier phones to book a window. Freight for this machine is a flat rate to the lower 48, shown at checkout before you pay. Full guide: how freight delivery works.
What happens if it arrives damaged?
Write the damage on the delivery receipt and photograph it before the driver leaves, then call us the same day. We file the claim with the carrier, not you.
What warranty does it carry?
The warranty the manufacturer publishes for this model. For a claim, contact us first. We open it with the manufacturer, coordinate parts or service, and stay on it until it is resolved.
Can I return it?
Call us within 30 days of delivery if the machine is not right for your facility and we arrange the return with the manufacturer. It must be unused or in like-new condition with its original packaging. Return freight is paid by the customer, and some manufacturers apply a restocking fee, which we pass through at cost. Full terms.
Will you match a lower price?
Yes, on machines. Send us the listing before you order and we match the same model advertised for less by another US seller. Price match terms.
Can my organization pay by purchase order?
Yes. Purchase orders are accepted, and net terms are reviewed case by case for approved commercial accounts. Use the commercial quote form to tell us your billing process.
Which pads and cleaning products should I use?
Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.
Product specifications
- Model
- DS-WC-2P-TL
- Power type
- compressed air and electricity
- Chemical pickup type
- draws from concentrated product
- Dilution ratio range (water:chemical)
- 7:1 to 125:1 note: dilution rate can be set independently for each product
- Number of products unit can draw from (and whether it draws simultaneously or one at a time)
- two products, simultaneously
- Suction line length/diameter
- 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
- Output volume
- 19 gal/min (72 l/min)
- Flow rate
- 2 gal/min (7.6 l/min)
- Pump seals
- Santoprene, Viton, or Kalrez
- Timer operation type
- repeat cycle
- Coverage area
- one nozzle: up to 9×5 ft. (2.7×1.5 m); two nozzles: up to 8×4 ft. (2.4×1.2 m) at each nozzle; three nozzles: up to 6×3 ft. (1.8×0.9 m) at each nozzle
- Fan tip
- one nozzle: ST80200SS; two nozzles: ST80100SS; three nozzles: ST8060-12SS
- Nozzle type
- twin-line stainless steel nozzle assembly
- Number of nozzles
- one control box can support up to three nozzle assemblies
- Distance from nozzles to control box
- the combined distance between the control box and the nozzle(s) must equal 100 ft. (30.5 m) or less
- Tubing/fitting sizes
- designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
- Compressed air requirements
- 40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- Water requirements
- 10-100 psi (0.7-6.9 bar) backflow prevention is required – consult local plumbing ordinances for more information.
- Liquid temperature range
- 40-100˚F (4.4-37.8˚C)
- Electrical requirements
- 100-240 VAC, 50-60Hz, 1A (GFCI protected outlet)
- Operating voltage
- 24 VDC
