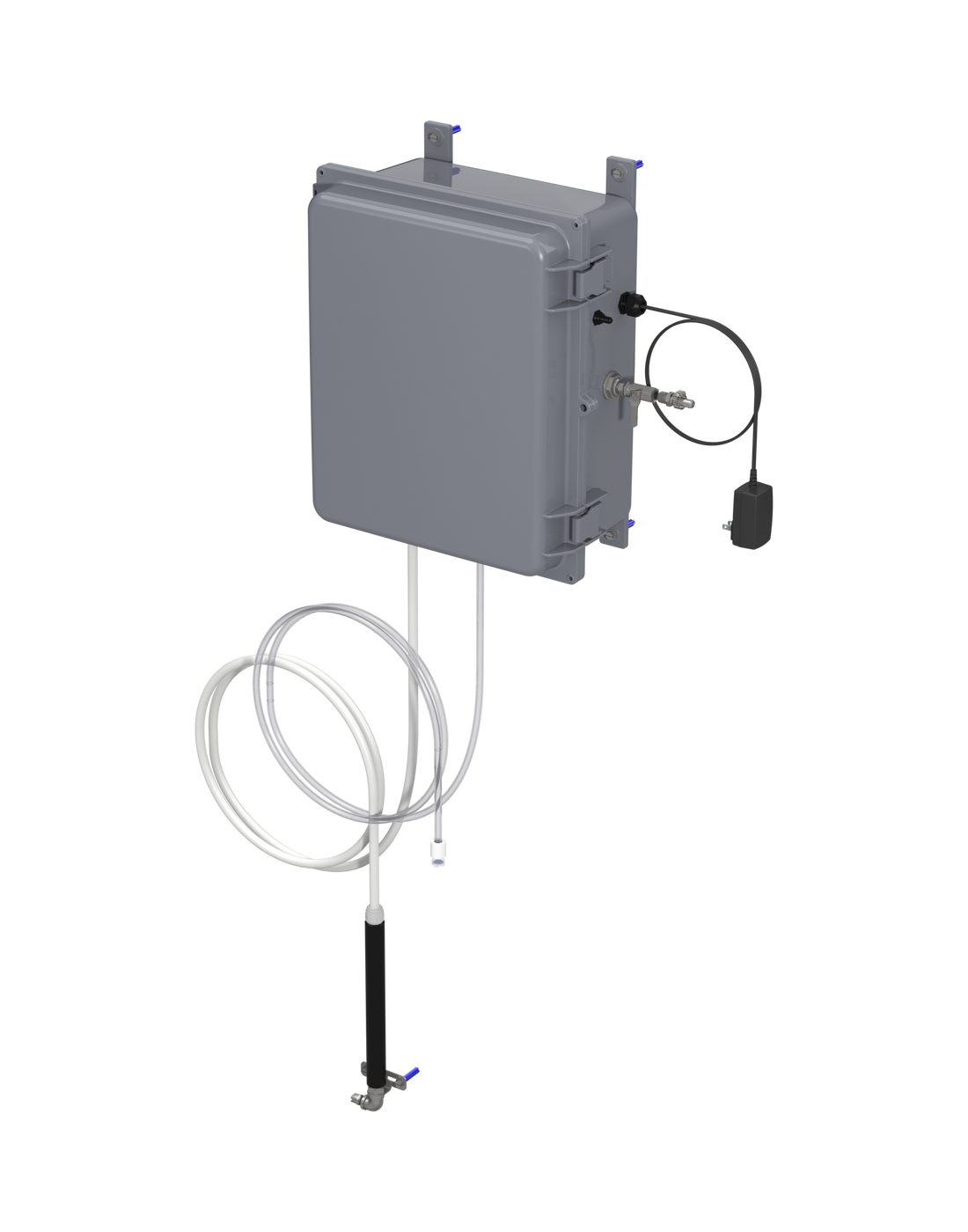

FOAMit 24V Single-Line Concentrate Doorway Foam Unit DS-WC
- FREIGHTFlat-rate freight to the lower 48: $295 for this item on its own. Your rate shows at checkout before you pay. How it works →
- Damaged in transit
- We file the claim
- FOAMit warranty
- We open the claim PDF
- Lower price from a US seller
- We match it
- SHIPS WITHIN THE USUS warehouse to your door. No customs, no duties.
- DISTRIBUTOR SINCE 1994The equipment arm of ERE Inc.
- FLAT-RATE FREIGHT$295 on its own, lower 48 — shown at checkout
- EQUIPMENT SUPPORTCall 1-866-989-7489, 24/7
Product description
Wall mounted, air and electricity powered, single-line concentrate foam unit for doorways. Supports up to two nozzle assemblies with a total of 25ft total distance and a repeat cycle digital timer. This is a direct replacement for the DS3.
- draws from concentrated product
- dilutes product at ratios of 38:1 to 183:1 (water:chemical)
- quick-change pump
- supports up to 2 nozzle assemblies
- up to 25 ft (7.6 m) total distance between control box and nozzle(s)
- consistent, reliable dilution rates, regardless of changes in water pressure
Receiving — do not sign clean
- Count the pieces against the bill of lading before the driver leaves. A machine, its batteries and its accessories can ship as separate items.
- Walk the pallet. Check the shrink-wrap, the crate corners and the machine itself — forks go through crates more often than anyone admits.
- Photograph any damage before you sign. Once the driver has your signature the photographs are worth much less.
- Write the damage on the delivery receipt. A clean signature on a damaged pallet is what makes a freight claim hard. Then call 1-866-989-7489 the same day.
Field demonstration
Complete your setup
This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.
Replacement parts & consumables
Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.
Why buy from Janitori
Janitori is located in Canada and sells commercial equipment to customers in the USA. More on how we operate →
Commercial & fleet orders
Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.
Questions, answered
What training is required to run this machine?
Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.
How does freight delivery actually work?
You get tracking and carrier details by email when it leaves the warehouse. A machine that travels on a pallet is delivered by appointment: the carrier phones to book a window. Freight for this machine is a flat rate to the lower 48, shown at checkout before you pay. Full guide: how freight delivery works.
What happens if it arrives damaged?
Write the damage on the delivery receipt and photograph it before the driver leaves, then call us the same day. We file the claim with the carrier, not you.
What warranty does it carry?
The warranty the manufacturer publishes for this model. For a claim, contact us first. We open it with the manufacturer, coordinate parts or service, and stay on it until it is resolved.
Can I return it?
Call us within 30 days of delivery if the machine is not right for your facility and we arrange the return with the manufacturer. It must be unused or in like-new condition with its original packaging. Return freight is paid by the customer, and some manufacturers apply a restocking fee, which we pass through at cost. Full terms.
Will you match a lower price?
Yes, on machines. Send us the listing before you order and we match the same model advertised for less by another US seller. Price match terms.
Can my organization pay by purchase order?
Yes. Purchase orders are accepted, and net terms are reviewed case by case for approved commercial accounts. Use the commercial quote form to tell us your billing process.
Which pads and cleaning products should I use?
Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.
Product specifications
- Model
- DS-WC
- Power type
- compressed air and electricity
- Chemical pickup type
- draws from concentrated product
- Dilution ratio range (water:chemical)
- 38:1 to 183:1
- Number of products unit can draw from
- one product
- Suction line length/diameter
- 8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter
- Flow rate
- 2 gal/min (7.6 l/min)
- Pump seals
- Santoprene, Viton, or Kalrez
- Timer operation type
- repeat cycle
- Coverage area
- one nozzle: up to 9×4 ft. (2.7×1.2 m); two nozzles: up to 5×3 ft. (1.5×0.9 m) at each nozzle
- Fan type
- ST8070SS
- Nozzle type
- single-line nozzle assembly (NZA-DS-SL)
- Number of nozzles
- one control box can support up to two nozzle assemblies
- Distance from nozzles to control box
- the combined distance between the control box and the nozzle(s) must equal 25 ft. (7.6 m) or less
- Tubing/fittings size
- designed for use with 1/2 in. (12.7 mm) outside diameter tubing between control box and nozzle(s)
- Compressed air requirements
- 40-80 psi (2.8-5.5 bar) with 5-10 cfm (141.6-283.2 l/min)
- Water requirements
- 10-100 psi (0.7-6.9 bar) backflow prevention is required – consult local plumbing ordinances for more information.
- Liquid temperature range
- 40-100˚F (4.4-37.8˚C)
- Electrical requirements
- 100-240 VAC, 50-60Hz, 1A (GFCI protected outlet)
- Operating voltage
- 24 VDC
Compare models in this line
Same manufacturer, same machine type — the three closest in price.
| FOAMit · Foam Unit |
This machine
Single-Line Concentrate Doorway DS-WC
|
Concentrate for 2-Part Products
FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products FI-CN-15N-2P
|
Smart FI-5N-SM
FOAMit 5 Gallon Smart Foam Unit FI-5N-SM
|
Twin-Line Concentrate Doorway DS-WC-TL
FOAMit 24V Twin-Line Concentrate Doorway Foam Unit DS-WC-TL
|
|---|---|---|---|---|
| Price | $2,645.14 | $2,737.19 | $2,547.16 | $2,860.59 |
| Air Supply Pressure | 40-80 psi | 40-80 psi | 40-80 psi | 40-80 psi |
| Flow | 2 gal/min | 2-2.25 gal/min | 2 gal/min | 2 gal/min |
| Air Requirement | 5-10 cfm | 5-10 cfm | 5-10 cfm | 5-10 cfm |
| Links | You are viewing this one | View model FOAMit 15 Gallon Concentrate Foam Unit for 2-Part Products FI-CN-15N-2P | View model FOAMit 5 Gallon Smart Foam Unit FI-5N-SM | View model FOAMit 24V Twin-Line Concentrate Doorway Foam Unit DS-WC-TL |
