VIPER 50000243 COMMERCIAL EQUIPMENT

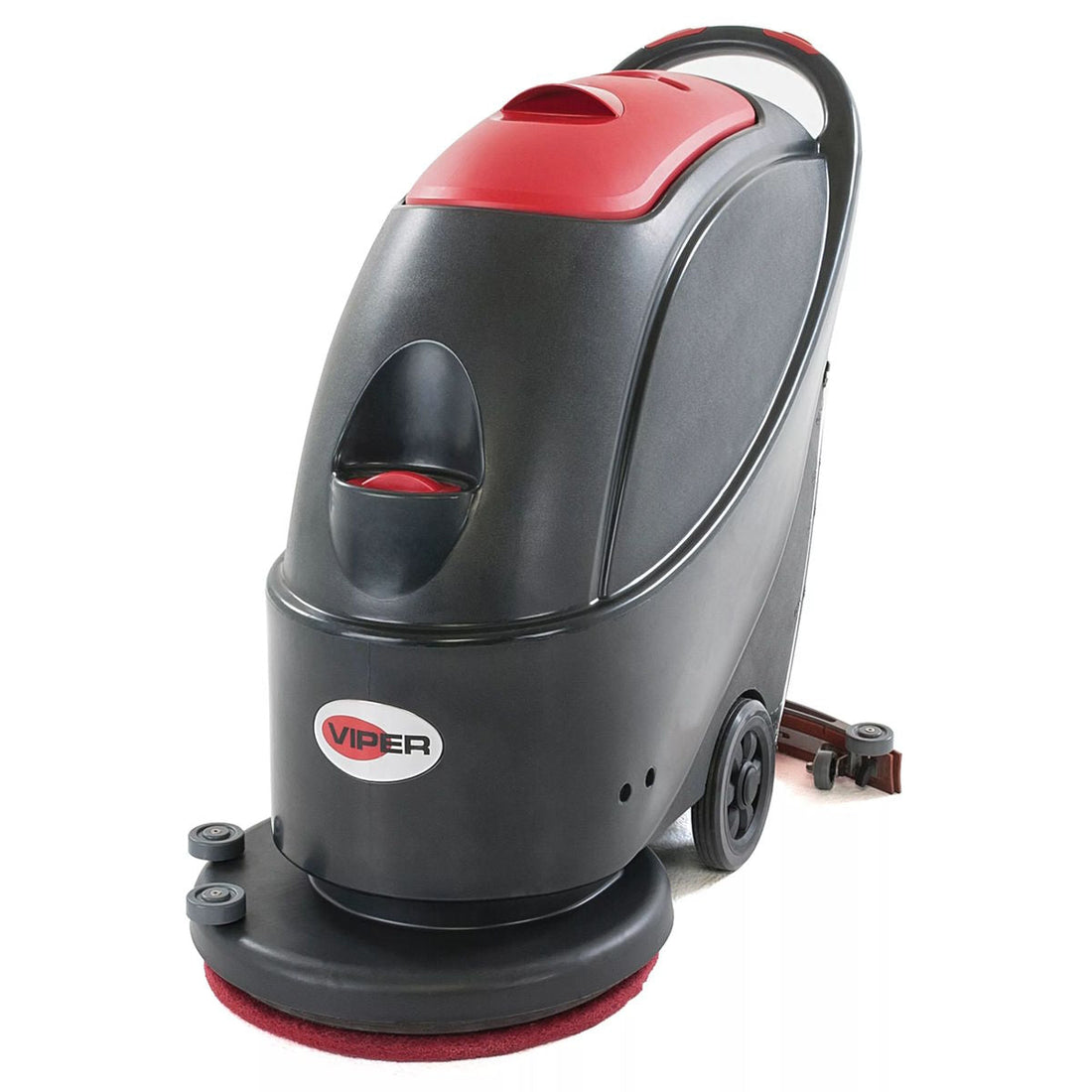

Viper AS510B 20" Battery Pad-Assist Walk-Behind Automatic Floor Scrubber — 10.5 gal, 24V AGM

$5,168.00~~$5,400.00~~ SAVE $232USD

FREIGHTFree freight to any US address, included at checkout. How it works →

Request a quote Ask about POs, net terms, fleet and volume needs

Need help choosing the right machine? Talk to a Janitori equipment specialist — we’ll match the machine to your floors, square footage and budget.

CALL A PRO1-888-287-3732

Available 24/7

US EQUIPMENT SALESSold to US customers by Janitori, based in Canada
DOCUMENTED DETAILSUse the specifications and documents published for this model
FREE FREIGHTAny US address, no order minimum — included at checkout
EQUIPMENT SUPPORTCall 1-888-287-3732, 24/7

JANITORI · EQUIPMENT DIVISION FIELD MANUAL · 50000243

Product description

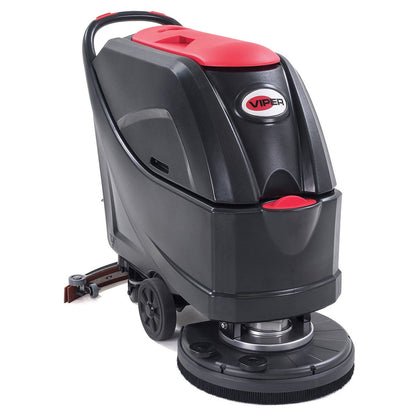

The Viper AS510B is a compact 20" cordless walk-behind disc scrubber built for tight, congested spaces — retail, healthcare, schools, small warehouses. Its pad-assist drive uses the spinning brush/pad to pull the machine forward (no separate transmission), while dual 10.5-gal tanks and 2× 105Ah AGM batteries deliver up to ~3 hours of runtime and ~47,000 sq ft per charge. SKU 50000243 ships with a 20" scrub brush; SKU 56384775 ships with a pad driver instead. Viper is Nilfisk's value-tier commercial line.

Pad-assist drive — the rotating brush/pad pulls the machine forward, reducing operator fatigue with no separate drive-motor cost/maintenance
20 in single-disc cleaning path; up to 15,748 sq ft/hr theoretical productivity
Cordless 24 V power: 2 × 105 Ah AGM maintenance-free batteries + 9 A onboard charger, up to ~3 hr runtime / ~47,000 sq ft per charge
77 lb brush pressure at 150 rpm for consistent scrubbing
Dual 10.5 gal solution and recovery tanks
31.1 in parabolic follow-behind squeegee leaves floors dry to the touch
Compact 47 × 24 in footprint for aisles, restrooms and congested areas
Configurable: 20 in scrub brush (50000243) for textured/uneven floors or 20 in pad driver (56384775) for smooth floors
Quiet 70 dB(A) operation for daytime/occupied-space cleaning

Receiving — do not sign clean

Operating weight282 lb (with batteries)Shipping weight335 lbDimensions (L × W × H)47 × 24 × 46 in (handle up); machine body height 980 mm (~38.6 in) per operator manual

Count the pieces against the bill of lading before the driver leaves. A machine, its batteries and its accessories can ship as separate items.
Walk the pallet. Check the shrink-wrap, the crate corners and the machine itself — forks go through crates more often than anyone admits.
Photograph any damage before you sign. Once the driver has your signature the photographs are worth much less.
Write the damage on the delivery receipt. A clean signature on a damaged pallet is what makes a freight claim hard. Then call 1-888-287-3732 the same day.

Full guide: how freight delivery works →

Field demonstration

MANUFACTURER DEMONSTRATION · VIPER

Quick overview

20 in Cleaning Path
15,748 sq ft/hr (ISSA theoretical) Productivity
10.5 / 10.5 gal (40 / 40 L) Solution / Recovery Tanks
Up to 3 hr per charge Run Time

CLEANING PRODUCTS

Janitori cleaning products are made in Canada. Confirm product compatibility with this machine before use.

Neutral cleaner (daily, pH-neutral, no-rinse)Everyday maintenance scrubbing on sealed/finished floors. Pair with a RED pad (light) or BLUE pad (general). Must be a LOW-FOAM / auto-scrubber-safe dilution — high foam floods the 40 L recovery tank and can reach the 350 W vac motor.
Degreaser (heavy-duty / industrial)Grease, tire marks, ground-in soil on concrete/VCT. Pair with BLUE (medium) to GREEN (aggressive) pad. Use a LOW-FOAM auto-scrubber degreaser specifically — standard foaming degreasers are not compatible with recovery/vac systems. Rinse pass with neutral if floor is to be re-finished.
Floor finish stripperRemoving old wax/finish before recoat. Pair with a BLACK stripping pad (brown for very heavy build-up). Run slow, keep the floor wet with stripper dwell. Strippers foam — add a defoamer to the recovery tank and expect to also wet-vac/rinse; the AS510B's 40 L recovery + 350 W vac will handle small-area strips, not full building strip-outs.
Floor finish / sealer (NOT machine-applied)The AS510B does not apply finish — it preps the floor. Workflow: strip (black pad) → neutralize/rinse (neutral cleaner, red/blue pad) → let dry → apply finish with a flat mop/finish applicator. Never put finish in the solution tank.
Universal low-foam ruleAcross ALL chemistries, use LOW-FOAM formulations on this machine. Foam control (defoamer in the recovery tank) is mandatory when stripping and recommended on heavy degreasing to protect the vacuum motor and prevent premature float shut-off.

Need help choosing?

Talk to our equipment desk about floor type, square footage, pads and cleaning-product compatibility.

1-888-287-3732 Available 24/7 Request a commercial quote →

Complete your setup

This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.

Floor Cleaner JANITORI™ - No.61 $41.95

Degreaser JANITORI™ - No.71 $42.95

Degreaser MAX JANITORI™ - No.72 $47.95

All-Purpose Cleaner JANITORI™ – No.03 $31.95

Surface Disinfectant JANITORI™ - No.08 $25.95

iSHINE JANITORI™ - No.09 $19.95

Browse the full Janitori chemistry line →

Replacement parts & consumables

Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.

VF90454 20" Pad Driver / pad holder (run floor pads instead of brush) $223.59

VF90417 20" Poly Scrub Brush (disc) $130.45

VF90119 Front Squeegee Blade $22.43

VF90120 Rear Squeegee Blade $27.70

VF90135 20" Complete Squeegee Assembly $270.72

VF90260 12V 105Ah AGM Maintenance-Free Battery (machine needs 2) $772.40

VF90227-US Onboard Battery Charger (US) $1,081.43

VF90621 Solution Filter Kit $19.87

VF90534 Recovery Float Filter Kit $23.55

Why buy from Janitori

CANADA-BASED BUSINESSJanitori is located in Canada and sells commercial equipment to customers in the USA.

MODEL DOCUMENTATIONReview the published specifications and documents for the exact machine before ordering.

CANADIAN CLEANING PRODUCTSJanitori cleaning products are made in Canada. Equipment origin varies by manufacturer.

FREE FREIGHTIncluded at checkout on every US equipment order — any US address, no order minimum.

MACHINE + CHEMISTRY, ONE SUPPLIERBuy the machine and the Canadian-made cleaning products it runs on from the same supplier.

DIRECT EQUIPMENT DESKCall during published hours for help matching a machine to the application.

Commercial & fleet orders

Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.

Get a commercial quote Wholesale program →

Questions, answered

What training is required to run this machine?

Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.

How does freight delivery actually work?

Delivery method and services depend on the order and destination. Confirm the shipment plan before ordering. Full guide: how freight delivery works.

What happens if it arrives damaged?

Note the damage on the delivery receipt, take photos, and contact us promptly so we can confirm the process applicable to that shipment.

Where can I find warranty information?

Use the warranty document published for this exact model, when present, and contact us with questions before ordering.

Can my organization request purchase-order terms?

Use the commercial quote form to describe your PO or net-terms process. We will confirm whether the requested process can be supported.

Which pads and cleaning products should I use?

Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.

Product specifications

Model / SKU: AS510B / 50000243 (brush); pad-driver config 56384775
Type: Walk-behind battery automatic disc scrubber-dryer
Drive system: Pad-assist (brush/pad rotation propels the machine; no separate drive motor)
Cleaning path width: 20 in (508 mm)
Voltage: 24 V (2 × 12 V)
Batteries: 2 × 12 V, 105 Ah AGM maintenance-free (C20), ~24 V system
Onboard charger: Yes — 9 A onboard charger included
Brush / pad motor: 0.75 HP (~560 W)
Brush / pad speed: 150 rpm
Brush / pad pressure: 77 lb (35 kg)
Brush / pad size: 20 in single disc
Vacuum motor: 350 W (~0.47 HP)
Water lift (vacuum): 47.2 in H2O (~1200 mm)
Squeegee width: 31.1 in (790 mm) parabolic follow-behind
Solution tank: 10.5 gal (40 L)
Recovery tank: 10.5 gal (40 L)
Productivity (theoretical): 15,748 sq ft/hr
Coverage per full charge: ~47,244 sq ft
Run time: Up to ~3 hr
Sound level: 70 dB(A)
Operating weight: 282 lb (with batteries)
Shipping weight: 335 lb
Dimensions (L × W × H): 47 × 24 × 46 in (handle up); machine body height 980 mm (~38.6 in) per operator manual
Transport / guide wheels: 200 mm transport wheel; 76 mm guide wheel
Warranty: 3 yr parts / 3 yr labor (authorized service center) / 1 yr travel / batteries prorated 12 mo
Included items: 2 × 105 Ah AGM batteries, 9 A onboard charger, 20 in scrub brush (50000243), 31.1 in squeegee assembly

Documents

D·01 Viper AS510B Operator / User Manual (US) — PDF PDF ↧ D·02 Viper AS430B & AS510B User Manual (incl. Technical Data) — PDF PDF ↧ D·03 Viper AS510B Parts Breakdown & Diagrams — Tank / Control / Electrical part lists PDF ↧ D·04 Nilfisk / Viper U.S. 2024 Commercial Warranty — 3 yr parts / 3 yr labor / 1 yr travel (manufacturer) PDF ↧

Compare models in this line

Same manufacturer, same machine type — the three closest in price.

Viper · Floor Scrubber	This machine AS510B Battery Pad-Assist Walk-Behind	AS5160 Battery Pad-Assist Walk-Behind Viper AS5160 20" Battery Pad-Assist Walk-Behind Automatic Floor Scrubber — 16 Gallon (105 Ah Wet Batteries)	Fang AS380/15B Compact Battery Viper Fang 15B (AS380/15B) 15" Compact Battery Micro Auto Scrubber	AS5160T Battery Traction-Drive Walk-Behind Viper AS5160T 20" Battery Traction-Drive Walk-Behind Scrubber-Dryer (16 gal)
Price	$5,168.00List price ~~$5,400.00~~	$5,720.00	$4,055.00	$6,591.00
Cleaning Path in	20	20	1538 cm	20508 mm
Productivity	15,748 sq ft/hrISSA theoretical	23,680 sq ft/hr	—	23,680 sq ft/hrtheoretical
Solution / Recovery Tanks	10.5 / 10.5 gal40 / 40 L	16 / 16 gal	3.5 / 3.5 gal13.5 / 13.5 L	16 / 16 gal61 / 61 L
Run Time	Up to 3 hr per charge	Up to 2.5 hours per charge	Up to 2 hrs per charge	up to 2.5 hours
Links	You are viewing this one	View model Viper AS5160 20" Battery Pad-Assist Walk-Behind Automatic Floor Scrubber — 16 Gallon (105 Ah Wet Batteries)	View model Viper Fang 15B (AS380/15B) 15" Compact Battery Micro Auto Scrubber	View model Viper AS5160T 20" Battery Traction-Drive Walk-Behind Scrubber-Dryer (16 gal)
