VIPER 56384810 COMMERCIAL EQUIPMENT

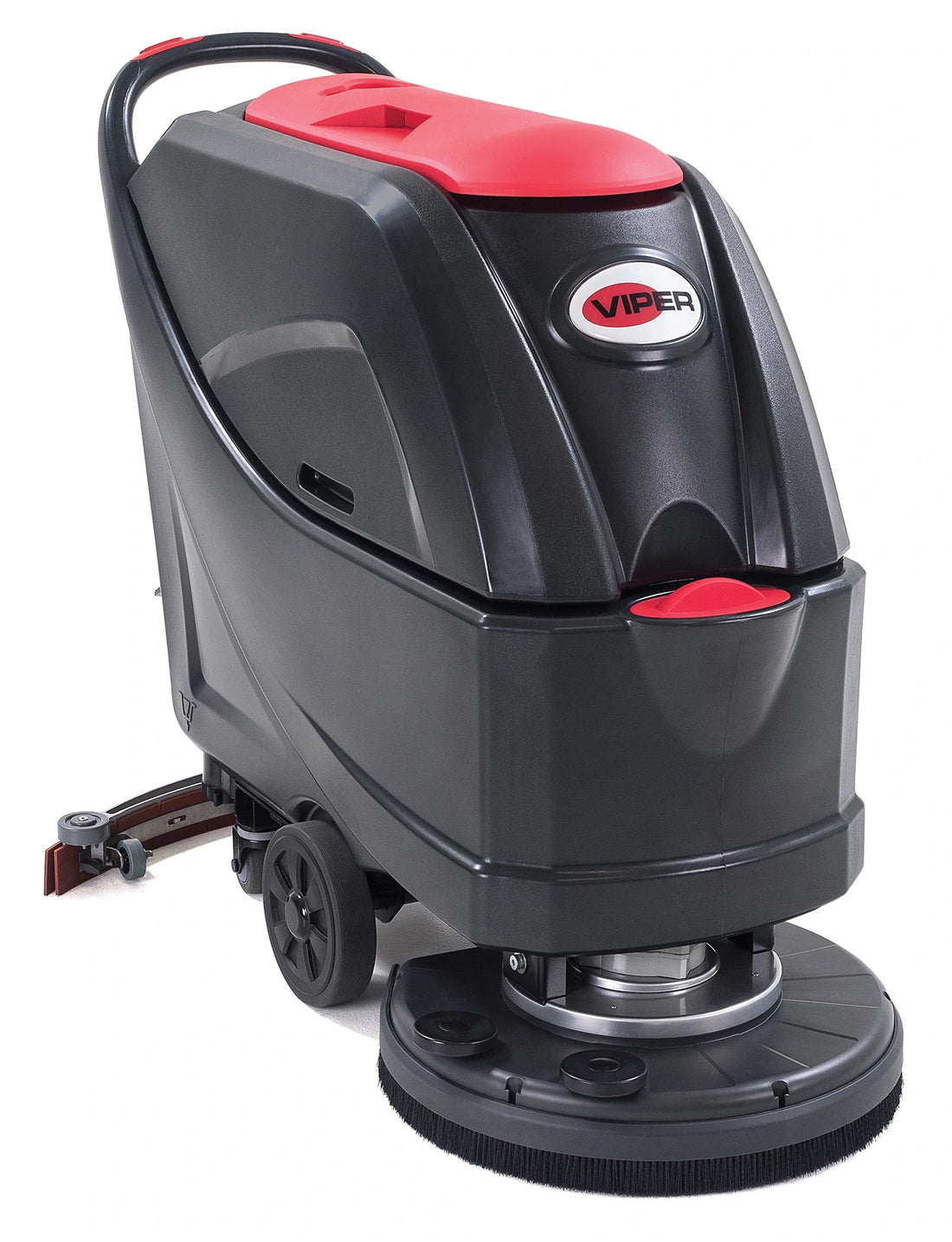

Viper AS5160 20" Battery Pad-Assist Walk-Behind Automatic Floor Scrubber — 16 Gallon (105 Ah Wet Batteries)

$5,720.00USD

FREIGHTFree freight to any US address, included at checkout. How it works →

Request a quote Ask about POs, net terms, fleet and volume needs

Need help choosing the right machine? Talk to a Janitori equipment specialist — we’ll match the machine to your floors, square footage and budget.

CALL A PRO1-888-287-3732

Available 24/7

US EQUIPMENT SALESSold to US customers by Janitori, based in Canada
DOCUMENTED DETAILSUse the specifications and documents published for this model
FREE FREIGHTAny US address, no order minimum — included at checkout
EQUIPMENT SUPPORTCall 1-888-287-3732, 24/7

JANITORI · EQUIPMENT DIVISION FIELD MANUAL · 56384810

Product description

The Viper AS5160 is a 20" battery walk-behind auto scrubber built for daily commercial cleaning, delivering up to 23,680 sq ft/hr with dual 16-gallon solution/recovery tanks and roughly 2.5 hours of run time per charge. It ships pad-assist ready with a 20" pad driver, a 31" cast-aluminum parabolic squeegee, two 12V/105Ah wet batteries, and an onboard 10-amp charger. The Nilfisk-built value line pairs rugged roto-molded tanks with an intuitive hour-meter/battery-gauge control panel for low-training-time operation in schools, retail, warehouses, and kitchens.

20" cleaning path with 23,680 sq ft/hr productivity — deep-cleans far faster than mopping
Dual 16-gallon solution + recovery tanks for long uninterrupted runs (up to ~29,200 sq ft / full charge)
Pad-assist drive with 20" pad driver included; accepts a 20" scrubbing brush for textured/safety floors
24V power (2 × 12V 105Ah wet batteries) with onboard 10A charger included — cordless, no trip hazards
~2.5 hours run time per charge; 450W brush motor at 150 RPM with adjustable ~60 lb pad pressure
31" heavy-duty cast-aluminum parabolic squeegee with 47.2" water lift for streak-free single-pass pickup
Quiet 69 dBA operation — suitable for daytime cleaning in occupied schools, offices, and retail
Rugged roto-molded tanks + robust chassis; intuitive control panel with hour meter and battery gauge
Tool-free brush/pad-driver removal for fast pad changes and maintenance
Nilfisk-backed US warranty: 3 yr parts, 3 yr labor, 1 yr travel, batteries prorated 12 months

Receiving — do not sign clean

Machine Weight254 lb (less batteries); ~473 lb with batteries; ~410 lb shippingMachine Dimensions52 in L × 22 in W × 39 in H

Count the pieces against the bill of lading before the driver leaves. A machine, its batteries and its accessories can ship as separate items.
Walk the pallet. Check the shrink-wrap, the crate corners and the machine itself — forks go through crates more often than anyone admits.
Photograph any damage before you sign. Once the driver has your signature the photographs are worth much less.
Write the damage on the delivery receipt. A clean signature on a damaged pallet is what makes a freight claim hard. Then call 1-888-287-3732 the same day.

Full guide: how freight delivery works →

Field demonstration

MANUFACTURER DEMONSTRATION · VIPER

Quick overview

20 in Cleaning Path
23,680 sq ft/hr Productivity
16 / 16 gal Solution / Recovery Tanks
Up to 2.5 hours per charge Run Time

CLEANING PRODUCTS

Janitori cleaning products are made in Canada. Confirm product compatibility with this machine before use.

Neutral cleaner (daily maintenance) → white or red padLow-foam neutral floor cleaner for routine daily scrubbing on sealed/finished hard floors. Pair with a white pad (light polish/burnish) or red pad (light scrub). Neutral pH protects floor finish; use the machine's low flow setting (0.15-0.3 gal/min) to conserve solution.
Degreaser (kitchens / heavy traffic) → blue or green padLOW-FOAM alkaline degreaser is mandatory in an auto-scrubber — standard high-foaming degreaser overwhelms the 16-gal recovery tank and can damage the 350W vacuum motor. Pair with a blue pad (medium scrub) or green pad (heavy scrub/grease). Increase solution flow and slow the pass on greasy quarry tile / kitchen floors.
Stripper (wax/finish removal) → black padHigh-alkaline floor stripper with a black strip pad to cut old wax/finish. Use a defoamer/low-foam stripper or add defoamer to the recovery tank (heavy foam from dissolved finish is the #1 vac-motor risk). Run slow with high flow; the AS5160's 60 lb pad pressure aids cut. Follow with a clean-water neutralize pass before re-coating.
Floor finish / sealer → NOT run through the machine (white pad for maintenance burnish only)Finish is applied by mop/applicator, not the scrubber. Use the AS5160 only to strip + neutral-rinse before finishing; for maintenance, a white pad supports light burnish/polish of the cured finish. Low-foam rule still applies to the pre-finish rinse.
Universal low-foam ruleEvery chemistry run through the AS5160 must be low-foam, or a defoamer/vac-motor protectant must be added to the recovery tank. Foam collapses vacuum water-lift (47.2 in), leaves streaks, overflows the recovery tank, and can burn out the 350W vacuum motor — the single most common auto-scrubber failure mode.

Need help choosing?

Talk to our equipment desk about floor type, square footage, pads and cleaning-product compatibility.

1-888-287-3732 Available 24/7 Request a commercial quote →

Complete your setup

This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.

Floor Cleaner JANITORI™ - No.61 $41.95

Degreaser JANITORI™ - No.71 $42.95

Degreaser MAX JANITORI™ - No.72 $47.95

All-Purpose Cleaner JANITORI™ – No.03 $31.95

Surface Disinfectant JANITORI™ - No.08 $25.95

iSHINE JANITORI™ - No.09 $19.95

Browse the full Janitori chemistry line →

Replacement parts & consumables

Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.

VF90545 20" Pad Driver w/ Center Lock for Viper AS510B / AS5160 $234.77

VF90417 20" Poly Scrub Brush (disc) $130.45

VF90119 Front Squeegee Blade $22.43

VF90120 Rear Squeegee Blade $27.70

VF90260 12V 105Ah AGM Maintenance-Free Battery (machine needs 2) $772.40

Americo 404420 20" Floor Pads (case of 5) — by color/aggressiveness $29.95

Why buy from Janitori

CANADA-BASED BUSINESSJanitori is located in Canada and sells commercial equipment to customers in the USA.

MODEL DOCUMENTATIONReview the published specifications and documents for the exact machine before ordering.

CANADIAN CLEANING PRODUCTSJanitori cleaning products are made in Canada. Equipment origin varies by manufacturer.

FREE FREIGHTIncluded at checkout on every US equipment order — any US address, no order minimum.

MACHINE + CHEMISTRY, ONE SUPPLIERBuy the machine and the Canadian-made cleaning products it runs on from the same supplier.

DIRECT EQUIPMENT DESKCall during published hours for help matching a machine to the application.

Commercial & fleet orders

Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.

Get a commercial quote Wholesale program →

Questions, answered

What training is required to run this machine?

Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.

How does freight delivery actually work?

Delivery method and services depend on the order and destination. Confirm the shipment plan before ordering. Full guide: how freight delivery works.

What happens if it arrives damaged?

Note the damage on the delivery receipt, take photos, and contact us promptly so we can confirm the process applicable to that shipment.

Where can I find warranty information?

Use the warranty document published for this exact model, when present, and contact us with questions before ordering.

Can my organization request purchase-order terms?

Use the commercial quote form to describe your PO or net-terms process. We will confirm whether the requested process can be supported.

Which pads and cleaning products should I use?

Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.

Product specifications

Manufacturer SKU: 56384810
Model / Drive Type: AS5160 — Pad-assist drive, disc deck
Cleaning Path Width: 20 in (51 cm)
Productivity (theoretical max): 23,680 sq ft/hr
Coverage per Full Charge: up to ~29,200 sq ft (≈25,000 sq ft practical)
Solution Tank: 16 gal (61 L)
Recovery Tank: 16 gal (61 L)
Voltage: 24 V (2 × 12 V)
Batteries: 2 × 12 V, 105 Ah Wet (lead-acid); included
Onboard Charger: 10 A, 100–240 V; included
Run Time per Charge: ≈2.5 hours
Brush / Pad Motor: 450 W (0.6 hp)
Vacuum Motor: 350 W
Total Power: 850 W
Brush / Pad Speed: 150 RPM
Brush / Pad Pressure: ~60 lb (59.5 lb)
Squeegee Width: 31 in (79 cm), cast-aluminum parabolic
Water Lift / Vacuum Suction: 47.2 in
Solution Flow Rate: 0 – 0.63 gal/min (adjustable)
Noise Level: 69 ± 3 dBA
Machine Weight: 254 lb (less batteries); ~473 lb with batteries; ~410 lb shipping
Machine Dimensions: 52 in L × 22 in W × 39 in H
Color: Black / Red
Included in Box: 20" pad driver, 31" squeegee assembly w/ blades, 2 × 105Ah wet batteries, onboard 10A charger, brush-deck skirts
Warranty (US): 3 yr parts, 3 yr labor (authorized service center), 1 yr travel, batteries prorated 12 months

Documents

D·01 Viper AS5160 / AS5160T Operator (User) Manual — manufacturer-hosted (Nilfisk US) PDF ↧ D·02 Viper AS5160 / AS5160T / AS516TO Parts List & Exploded Diagrams — manufacturer-hosted (Nilfisk US) PDF ↧ D·03 Viper AS5160 Product Brochure / Spec Sheet — manufacturer-hosted (Nilfisk US) PDF ↧ D·04 Nilfisk US Limited Warranty — 3 yr parts / 3 yr labor / 1 yr travel on commercial scrubbers; lead-acid batteries 12 months manufacturer defect (manufacturer-hosted PDF) PDF ↧ D·05 Nilfisk/Viper AS5160 official product page (confirms active production) PDF ↧

Compare models in this line

Same manufacturer, same machine type — the three closest in price.

Viper · Floor Scrubber	This machine AS5160 Battery Pad-Assist Walk-Behind	AS510B Battery Pad-Assist Walk-Behind Viper AS510B 20" Battery Pad-Assist Walk-Behind Automatic Floor Scrubber — 10.5 gal, 24V AGM	AS5160T Battery Traction-Drive Walk-Behind Viper AS5160T 20" Battery Traction-Drive Walk-Behind Scrubber-Dryer (16 gal)	Fang AS380/15B Compact Battery Viper Fang 15B (AS380/15B) 15" Compact Battery Micro Auto Scrubber
Price	$5,720.00	$5,168.00List price ~~$5,400.00~~	$6,591.00	$4,055.00
Cleaning Path in	20	20	20508 mm	1538 cm
Productivity	23,680 sq ft/hr	15,748 sq ft/hrISSA theoretical	23,680 sq ft/hrtheoretical	—
Solution / Recovery Tanks	16 / 16 gal	10.5 / 10.5 gal40 / 40 L	16 / 16 gal61 / 61 L	3.5 / 3.5 gal13.5 / 13.5 L
Run Time	Up to 2.5 hours per charge	Up to 3 hr per charge	up to 2.5 hours	Up to 2 hrs per charge
Links	You are viewing this one	View model Viper AS510B 20" Battery Pad-Assist Walk-Behind Automatic Floor Scrubber — 10.5 gal, 24V AGM	View model Viper AS5160T 20" Battery Traction-Drive Walk-Behind Scrubber-Dryer (16 gal)	View model Viper Fang 15B (AS380/15B) 15" Compact Battery Micro Auto Scrubber
