TORNADO TE310-G15-U COMMERCIAL EQUIPMENT

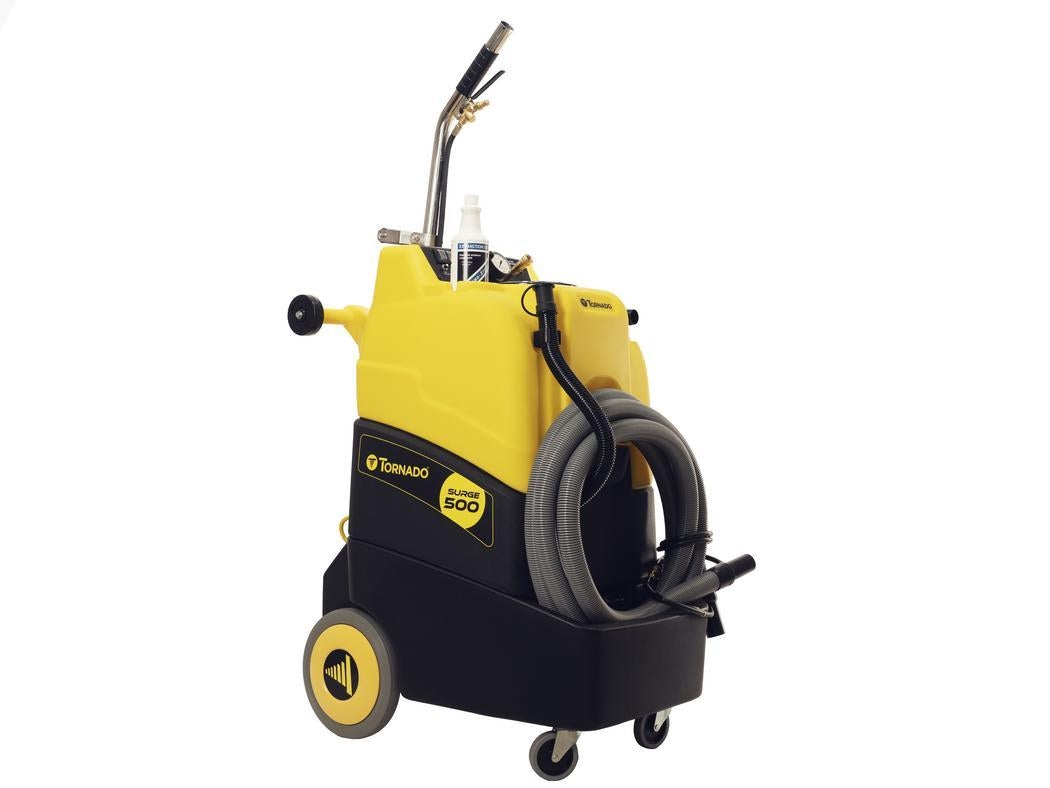

Tornado Surge 500 TE310-G15-U Heated Box & Wand Carpet Extractor — 15 gal, 50-500 psi, 190°F, 133 CFM

$4,299.00~~$4,799.00~~ SAVE $500USD

FREIGHTFree freight to any US address, included at checkout. How it works →

Request a quote Ask about POs, net terms, fleet and volume needs

Need help choosing the right machine? Talk to a Janitori equipment specialist — we’ll match the machine to your floors, square footage and budget.

CALL A PRO1-888-287-3732

Available 24/7

US EQUIPMENT SALESSold to US customers by Janitori, based in Canada
DOCUMENTED DETAILSUse the specifications and documents published for this model
FREE FREIGHTAny US address, no order minimum — included at checkout
EQUIPMENT SUPPORTCall 1-888-287-3732, 24/7

JANITORI · EQUIPMENT DIVISION FIELD MANUAL · TE310-G15-U

Product description

The Tornado Surge 500 (TE310-G15-U) is a premium heated portable carpet extractor for restoration, hotels, offices and schools that need maximum extraction and fast drying. Dual 15-gallon solution/recovery tanks, a wet-pickup 'Airwatt' vacuum with electronic float shutoff, adjustable 50-500 psi spray pressure and a 1,700-1,750 W in-line heater that brings solution to ~190°F combine for deep hot-water extraction. A clamshell body and rear service panel open fast to the pump, vac and heater.

Adjustable 50-500 psi spray pressure — dial down for delicate upholstery, up for deep pile and heavy soil
In-line heater brings solution to ~190°F for hot-water extraction and faster drying
Dual 15-gallon solution + recovery tanks clean large areas between fills/dumps
Wet-pickup 'Airwatt' vacuum with sealed bearings + electronic float shutoff (built for water, not just air)
133 CFM / 125" water lift pulls more moisture for shorter dry times
Clamshell body + rear service panel open fast to the pump, vac and heater — less downtime
12" stair-assist rear wheels, 4" casters and handle transport wheels for stairs, curbs and van loading
Onboard storage for hose, 2-piece wand, dual cords and chemicals
Made in USA; 10-yr roto-molded body warranty

Receiving — do not sign clean

Dimensions (L×W×H)36.5 × 23.5 × 45.5 in (per JaniSource)Weight152 lb

Count the pieces against the bill of lading before the driver leaves. A machine, its batteries and its accessories can ship as separate items.
Walk the pallet. Check the shrink-wrap, the crate corners and the machine itself — forks go through crates more often than anyone admits.
Photograph any damage before you sign. Once the driver has your signature the photographs are worth much less.
Write the damage on the delivery receipt. A clean signature on a damaged pallet is what makes a freight claim hard. Then call 1-888-287-3732 the same day.

Full guide: how freight delivery works →

Field demonstration

MANUFACTURER DEMONSTRATION · TORNADO

Quick overview

15 / 15 gal Solution / Recovery Tanks
adjustable 50-500 psi Pump Pressure
up to 190 °F Heat
125 in Water Lift

CLEANING PRODUCTS

Janitori cleaning products are made in Canada. Confirm product compatibility with this machine before use.

Low-foam requirement (READ FIRST)A carpet extractor pulls dirty solution back through the vacuum motor — only LOW-FOAM carpet-extraction chemistry may be used. Foam builds in the recovery tank and can be pulled into the vac motor, damaging it and killing water recovery. If any chemistry foams, dose a commercial defoamer concentrate into the recovery tank per its label. Always dilute per label into the 15 gal solution tank.
Low-foam carpet-extraction detergent (primary)Pair a Janitori LOW-FOAM carpet-extraction detergent as the everyday deep-clean chemistry for hotels, offices, schools and restoration work. Meter into the 15 gal solution tank at label dilution.
Heat pairingThis unit heats solution (~190°F hot-water), which boosts detergent activity on grease/oily soils — still use only low-foam, heat-stable extraction chemistry.
Pre-spray / traffic-lane cleanerPre-spray heavy soil and traffic lanes with a Janitori alkaline traffic-lane pre-spray, dwell, then extract. Speeds soil release and cuts passes.
Defoamer (protects the vac motor — READ FIRST)Keep a Janitori/compatible defoamer on hand; dose the recovery tank if foam appears to protect the wet-pickup vacuum motor.
Carpet protector (finishing pass)Apply a Janitori fluorochemical carpet protector as a separate finishing pass after extraction to extend soil resistance between cleans.

Need help choosing?

Talk to our equipment desk about floor type, square footage, pads and cleaning-product compatibility.

1-888-287-3732 Available 24/7 Request a commercial quote →

Complete your setup

This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.

Floor Cleaner JANITORI™ - No.61 $41.95

Degreaser JANITORI™ - No.71 $42.95

Degreaser MAX JANITORI™ - No.72 $47.95

All-Purpose Cleaner JANITORI™ – No.03 $31.95

Surface Disinfectant JANITORI™ - No.08 $25.95

iSHINE JANITORI™ - No.09 $19.95

Browse the full Janitori chemistry line →

Replacement parts & consumables

Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.

PFX-2PC Tornado PFX-2PC Two-Piece Single-Bend Stainless Carpet Wand (single jet) $585.99

1504WDSI-HP Tornado 20' High-Pressure Insider Vac/Solution Hose (1250 psi) $428.39

1504WDSI Tornado 20' Insider Vac/Solution Hose Assembly $257.03

AA160.1 Tornado Stainless Crevice / Detail Tool $286.99

AA176.1 Tornado Stainless Upholstery Tool (1.5", perforated, 500 psi) $486.99

WW1000-2 Tornado 2-Jet Wonder Wand (spray jets) $1,496.99

Why buy from Janitori

CANADA-BASED BUSINESSJanitori is located in Canada and sells commercial equipment to customers in the USA.

MODEL DOCUMENTATIONReview the published specifications and documents for the exact machine before ordering.

CANADIAN CLEANING PRODUCTSJanitori cleaning products are made in Canada. Equipment origin varies by manufacturer.

FREE FREIGHTIncluded at checkout on every US equipment order — any US address, no order minimum.

MACHINE + CHEMISTRY, ONE SUPPLIERBuy the machine and the Canadian-made cleaning products it runs on from the same supplier.

DIRECT EQUIPMENT DESKCall during published hours for help matching a machine to the application.

Commercial & fleet orders

Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.

Get a commercial quote Wholesale program →

Questions, answered

What training is required to run this machine?

Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.

How does freight delivery actually work?

Delivery method and services depend on the order and destination. Confirm the shipment plan before ordering. Full guide: how freight delivery works.

What happens if it arrives damaged?

Note the damage on the delivery receipt, take photos, and contact us promptly so we can confirm the process applicable to that shipment.

Where can I find warranty information?

Use the warranty document published for this exact model, when present, and contact us with questions before ordering.

Can my organization request purchase-order terms?

Use the commercial quote form to describe your PO or net-terms process. We will confirm whether the requested process can be supported.

Which pads and cleaning products should I use?

Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.

Product specifications

Model / Catalog #: Surge 500 / TE310-G15-U
Type: Upright box/portable carpet extractor, heated, with 2-piece wand
Solution Tank: 15 gal
Recovery Tank: 15 gal
Pump Pressure: Variable 50-500 psi
Heater: In-line, 1,700 W (mfr spec sheet) / 1,750 W (JaniSource); max ~190°F
Vacuum Motor: Single 'Airwatt' brushed-AC wet-pickup motor, ~625 W, sealed bearings, electronic float shutoff
CFM: 135 (mfr spec table) / 133 (mfr overview + retailers)
Water Lift: 125 in
Hose: 20 ft Insider vac/solution hose, 1.5" dia
Wand: 2-piece single-bend stainless wand included (rated up to ~800-1000 psi)
Cord: Dual-circuit, 2 × 25 ft pigtail/locking; 12-gauge 3-wire SJTW, safety yellow
Amp Draw: 2 × 15 A (dual circuit)
Wheels: 12" rear (stair-assist) + 4" front casters + handle-mounted transport wheels
Dimensions (L×W×H): 36.5 × 23.5 × 45.5 in (per JaniSource)
Weight: 152 lb
Warranty: 4 yr parts / 10 yr rotationally-molded body / 2 yr labor
Made In: USA
Applications: Hotels, offices, schools, restoration/water-damage, large carpeted commercial areas, upholstery

Documents

D·01 Surge 500 Spec Sheet — manufacturer-hosted (tornadovac.com) PDF ↧ D·02 Surge 500 Operator/Use & Maintenance Manual — manufacturer-hosted PDF ↧ D·03 Tornado Limited Warranty (4 yr parts / 10 yr roto body / 2 yr labor) — warranty statement printed inside the Surge 500 operator manual PDF ↧ D·04 Surge 500 replacement-parts & accessory callouts (within the operator manual) PDF ↧

Compare models in this line

Same manufacturer, same machine type — the three closest in price.

Tornado · Carpet Extractor	This machine Surge TE310-G15-U Heated Box	Surge TE200-G15-U Heated Box Tornado Surge 220 TE200-G15-U Heated Box & Wand Carpet Extractor — 15 gal, 220 psi, 133 CFM	Marathon Self-Contained Path Tornado Marathon 1200 (98168) Self-Contained Carpet Extractor — 19" Path / 17" Head, 12 gal, Self-Contained	Marathon SE Self-Contained Tornado Marathon SE 900 (98170) Self-Contained Carpet Extractor — 18" Path, 9 gal, 1300 RPM Brush
Price	$4,299.00List price ~~$4,799.00~~	$3,999.00	$3,499.00	$2,799.00List price ~~$3,100.00~~
Solution / Recovery Tanks	15 / 15 gal	15 / 15-16 gal	12 / 14 gal	9 / 6 gal
Pump Pressure	adjustable 50-500 psi	220 psi	—	—
Heat	up to 190 °F	heated —1,700 W in-line	—	—
Water Lift in	125	125	117	120
Links	You are viewing this one	View model Tornado Surge 220 TE200-G15-U Heated Box & Wand Carpet Extractor — 15 gal, 220 psi, 133 CFM	View model Tornado Marathon 1200 (98168) Self-Contained Carpet Extractor — 19" Path / 17" Head, 12 gal, Self-Contained	View model Tornado Marathon SE 900 (98170) Self-Contained Carpet Extractor — 18" Path, 9 gal, 1300 RPM Brush
