TORNADO TS120-S53-UC COMMERCIAL EQUIPMENT

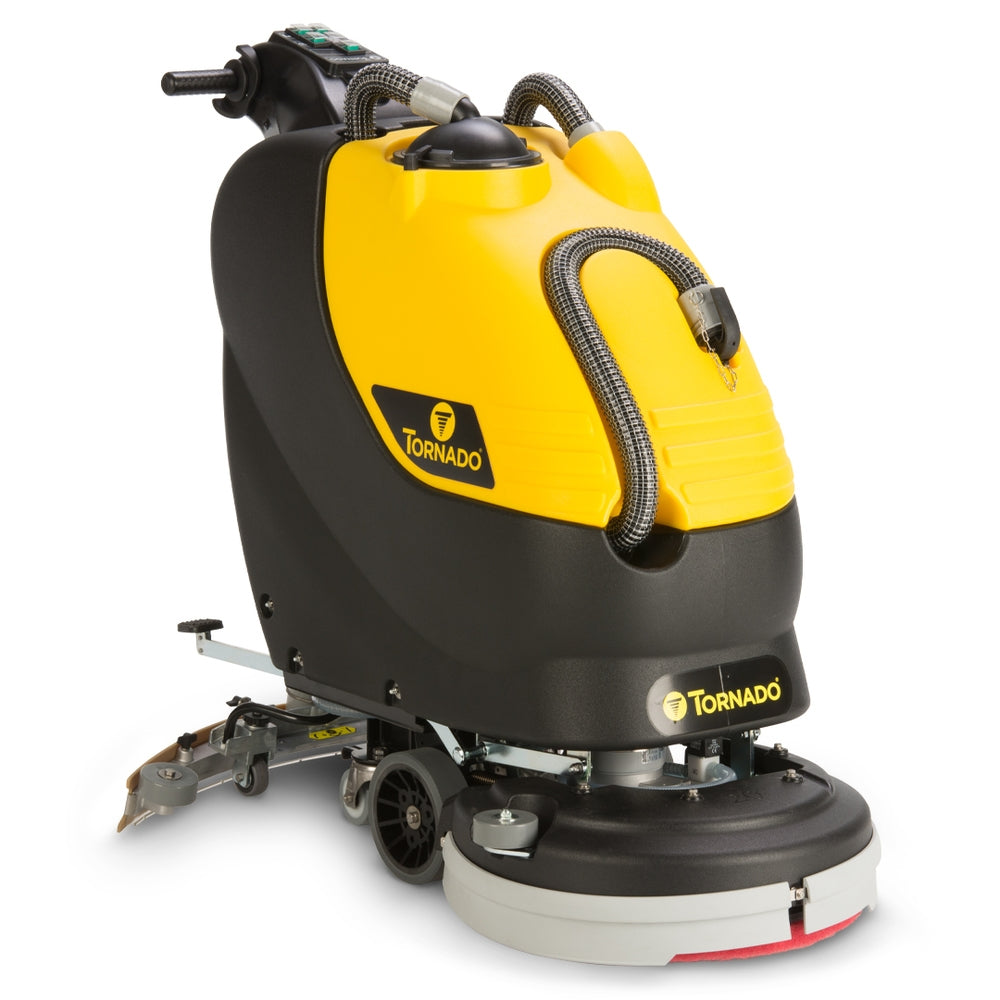

Tornado BD 20/11LT 20" Traction-Drive Walk-Behind Automatic Floor Scrubber — 11 Gal Solution / 12 Gal Recovery, 24V Lead-Acid Batteries (TS120-S53-UC)

$6,100.00USD

FREIGHTFree freight to any US address, included at checkout. How it works →

Request a quote Ask about POs, net terms, fleet and volume needs

Need help choosing the right machine? Talk to a Janitori equipment specialist — we’ll match the machine to your floors, square footage and budget.

CALL A PRO1-888-287-3732

Available 24/7

US EQUIPMENT SALESSold to US customers by Janitori, based in Canada
DOCUMENTED DETAILSUse the specifications and documents published for this model
FREE FREIGHTAny US address, no order minimum — included at checkout
EQUIPMENT SUPPORTCall 1-888-287-3732, 24/7

JANITORI · EQUIPMENT DIVISION FIELD MANUAL · TS120-S53-UC

Product description

The Tornado BD 20/11LT is a compact 20" self-propelled (traction-drive) walk-behind auto scrubber that cleans and dries up to ~18,837 sq ft/hr in a single pass while fitting through standard doorways. Its dedicated traction drive reduces operator fatigue, 48.5 lb of down pressure at 155 RPM tackles ground-in soil, and 24V lead-acid batteries with an on-board charger deliver up to 4 hours of runtime at under 70 dB(A). Roto-molded polyethylene 11/12-gallon tanks and tool-free squeegee/brush changes keep maintenance and downtime low. Made in the USA.

Traction drive (self-propelled) — dedicated drive independent of the operator's push effort; reduces fatigue over long shifts
20" single-disc cleaning path clears up to ~18,837 sq ft/hr yet fits through standard doorways
48.5 lb brush down-pressure at 155 RPM (up to 66 lb max per manual) for aggressive soil removal
24V lead-acid batteries + on-board 24V charger; up to 4 hours uninterrupted runtime
Quiet <70 dB(A) operation — suited to hospitals, schools, retail, offices
Roto-molded polyethylene 11-gal solution / 12-gal recovery tanks — corrosion-resistant and washable
Tool-free squeegee and brush/pad changes in seconds; on-board operating instructions cut training time
31" parabolic squeegee for effective water pickup; overflow float protects the vacuum motor
Battery upgrade path: AGM (TS120-S53-UG) or TPPL (TS120-S53-UE) for faster charging and longer service life
Made in the USA; Class III, IP X3 protection

Configurations: TS120-S53-UC — lead-acid batteries with on-board charger (the configuration supplied); base catalogue number TS120-S53-U.

Receiving — do not sign clean

Dimensions (L×W×H)43" × 21" × 41" (manual lists 47"L × 21"W × 42"H)Weight350 lb with batteries / 187 lb without (battery pair ~163 lb)

Count the pieces against the bill of lading before the driver leaves. A machine, its batteries and its accessories can ship as separate items.
Walk the pallet. Check the shrink-wrap, the crate corners and the machine itself — forks go through crates more often than anyone admits.
Photograph any damage before you sign. Once the driver has your signature the photographs are worth much less.
Write the damage on the delivery receipt. A clean signature on a damaged pallet is what makes a freight claim hard. Then call 1-888-287-3732 the same day.

Full guide: how freight delivery works →

Field demonstration

MANUFACTURER DEMONSTRATION · TORNADO

Quick overview

20 in (508 mm), single disc Cleaning Path
18,837 sq ft/hr (up to 21,528 theoretical max) Productivity
11 / 12 gallons (40 L / 45 L) Solution / Recovery Tanks
Up to 4 hours (24V lead-acid) Run Time

CLEANING PRODUCTS

Janitori cleaning products are made in Canada. Confirm product compatibility with this machine before use.

Neutral cleaner (daily routine)Low-foam neutral floor cleaner, high dilution. Pair with RED pad (light daily clean/buff) or BLUE pad (medium daily scrub). Best everyday chemistry — safe on finished/sealed floors, no rinse issues. Keep detergent % minimal to avoid foam.
Degreaser (heavy/food-service/industrial soil)Low-foam alkaline degreaser. Pair with GREEN pad (heavy scrub) or BLUE for moderate grease. Use the oil-resistant rear squeegee blade (48405030) on greasy floors. Watch foam — add anti-foam to recovery tank.
Stripper (floor-finish removal)Low-foam floor stripper, heavy solution flow, slow overlapping passes. Pair with BLACK or BROWN pad (most aggressive). Strippers foam heavily and are highly caustic — mandatory low-foam/defoamer, or foam trips the overflow float and can reach the vacuum motor. Consider a dedicated pad driver.
Finish / sealerDo NOT apply floor finish/sealer through the scrubber — this is a clean-and-dry machine only. Apply finish separately by microfiber flat mop/applicator after the floor is stripped, neutralized, and fully dry.
Low-foam requirement (all chemistry)Operator manual explicitly mandates LOW-FOAM detergent at minimum concentration; excess foam damages the suction motor and trips the recovery-tank overflow float. Add a small amount of anti-foam/defoamer to the recovery tank before stripping or when running high-alkaline chemistry.

Need help choosing?

Talk to our equipment desk about floor type, square footage, pads and cleaning-product compatibility.

1-888-287-3732 Available 24/7 Request a commercial quote →

Complete your setup

This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.

Floor Cleaner JANITORI™ - No.61 $41.95

Degreaser JANITORI™ - No.71 $42.95

Degreaser MAX JANITORI™ - No.72 $47.95

All-Purpose Cleaner JANITORI™ – No.03 $31.95

Surface Disinfectant JANITORI™ - No.08 $25.95

iSHINE JANITORI™ - No.09 $19.95

Browse the full Janitori chemistry line →

Replacement parts & consumables

Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.

48802010 Tornado 20" Pad Driver / Holder Assembly (+ center lock) $264.00

48902050 Tornado 20" Disk Scrub Brush — PPL 0.6 (normal floors) $194.99

48902010 Tornado 20" Disk Scrub Brush — PPL 0.3 (irregular floors, large joints) $196.99

48902030 Tornado 20" Disk Scrub Brush — PPL 0.9 (smooth floors, heavier soil) $200.99

48902040 Tornado 20" Disk Brush — TYNEX abrasive (resistant material, very dirty floors) $572.99

48902060 Tornado 20" Disk Brush — 5-mix (all floor types) $307.99

48405020 Front Squeegee Blade $34.99

48405010 Rear Squeegee Blade $48.99

Why buy from Janitori

CANADA-BASED BUSINESSJanitori is located in Canada and sells commercial equipment to customers in the USA.

MODEL DOCUMENTATIONReview the published specifications and documents for the exact machine before ordering.

CANADIAN CLEANING PRODUCTSJanitori cleaning products are made in Canada. Equipment origin varies by manufacturer.

FREE FREIGHTIncluded at checkout on every US equipment order — any US address, no order minimum.

MACHINE + CHEMISTRY, ONE SUPPLIERBuy the machine and the Canadian-made cleaning products it runs on from the same supplier.

DIRECT EQUIPMENT DESKCall during published hours for help matching a machine to the application.

Commercial & fleet orders

Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.

Get a commercial quote Wholesale program →

Questions, answered

What training is required to run this machine?

Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.

How does freight delivery actually work?

Delivery method and services depend on the order and destination. Confirm the shipment plan before ordering. Full guide: how freight delivery works.

What happens if it arrives damaged?

Note the damage on the delivery receipt, take photos, and contact us promptly so we can confirm the process applicable to that shipment.

Where can I find warranty information?

Use the warranty document published for this exact model, when present, and contact us with questions before ordering.

Can my organization request purchase-order terms?

Use the commercial quote form to describe your PO or net-terms process. We will confirm whether the requested process can be supported.

Which pads and cleaning products should I use?

Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.

Product specifications

Manufacturer SKU / Catalog No.: TS120-S53-UC (lead-acid); base catalog TS120-S53-U
Machine Type: Walk-behind automatic scrubber — single disc, traction drive (self-propelled)
Cleaning Path Width: 20 in (508 mm)
Brush / Pad Diameter: 20 in (508 mm), single disc
Brush Speed: 155 RPM
Brush Down-Pressure: 48.5 lb; up to 66 lb (30 kg) max per operator manual
Productivity: 18,837 sq ft/hr (up to 21,528 sq ft/hr theoretical max)
Squeegee Width: 31 in (30 in / 770 mm per manual)
Brush Motor: 350 W (0.46 hp)
Vacuum / Suction Motor: 450 W (0.6 hp); ~48–50 in water lift (120 mbar)
Drive System: Traction drive, self-propelled (~0.16 hp drive motor)
Max Gradient: 2% (per operator manual)
Solution Tank: 11 gal (40 L)
Recovery Tank: 12 gal (45 L)
Tank Construction: Roto-molded polyethylene (corrosion-resistant, washable)
Voltage: 24V DC (2 × 12V batteries in series)
Battery Type (this SKU): Lead-acid / wet, 2 required (P/N 99508). Options: AGM (99555) / TPPL (NXS120)
Charger: On-board 24V charger included
Charge Time: 8–10 hr lead-acid; 4–6 hr AGM; 2–4 hr TPPL
Run Time: Up to 4 hours
Sound Level: <70 dB(A) (per IEC 704/1)
Dimensions (L×W×H): 43" × 21" × 41" (manual lists 47"L × 21"W × 42"H)
Weight: 350 lb with batteries / 187 lb without (battery pair ~163 lb)
Protection: Class III, IP X3
Included Items: On-board 24V charger, 20" pad driver/holder (P/N 48802010), squeegee assembly; (2) lead-acid batteries
Country of Origin: Made in USA
UPC: 400015639651
Warranty: 4 yr parts / 2 yr labor / 10 yr roto-molded body & poly tanks (BD 20/11 spec sheet); batteries 1 yr prorated via battery mfr. Tornado base 'Long-Term Buyer Protection' limited warranty is 2 yr parts / 1 yr labor / 10 yr body.

Documents

D·01 Tornado BD 20/11L / BD 20/11LT Operations & Maintenance Manual (Form T-OM680LT) — manufacturer PDF; includes safety, technical specs, maintenance, troubleshooting, warranty-activation statement, and Recommended Brushes/Pads part list PDF ↧ D·02 Tornado BD 20/11 Spec Sheet — manufacturer PDF (specs + warranty terms 4yr parts/10yr roto/2yr labor) PDF ↧ D·03 Tornado Warranty Registration & Information (activate within 30 days) — manufacturer. Warranty terms: Long-Term Buyer Protection Limited Warranty (10 yr plastic tanks/roto-molded bodies, 2 yr parts, 1 yr labor, 1 yr prorated batteries); BD 20/11 spec sheet lists enhanced 4 yr parts / 2 yr labor for this model. PDF ↧
