TORNADO 99695T-C COMMERCIAL EQUIPMENT

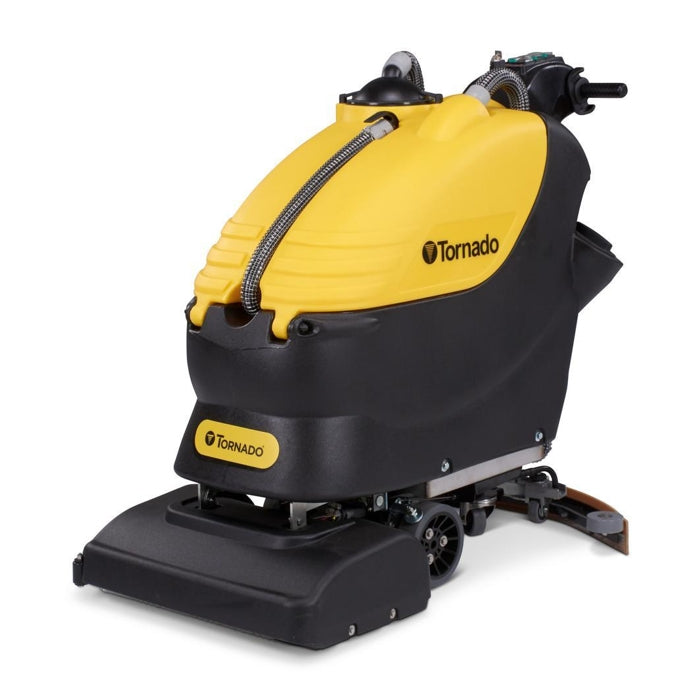

Tornado BR 22/14T Traction-Drive Cylindrical Walk-Behind Automatic Scrubber — 22" Path, 14 Gal, 24V (w/ Batteries & On-Board Charger) (99695T-C)

$8,999.00USD

FREIGHTFree freight to any US address, included at checkout. How it works →

Request a quote Ask about POs, net terms, fleet and volume needs

Need help choosing the right machine? Talk to a Janitori equipment specialist — we’ll match the machine to your floors, square footage and budget.

CALL A PRO1-888-287-3732

Available 24/7

US EQUIPMENT SALESSold to US customers by Janitori, based in Canada
DOCUMENTED DETAILSUse the specifications and documents published for this model
FREE FREIGHTAny US address, no order minimum — included at checkout
EQUIPMENT SUPPORTCall 1-888-287-3732, 24/7

JANITORI · EQUIPMENT DIVISION FIELD MANUAL · 99695T-C

Product description

The Tornado BR 22/14T is a 22-inch traction-drive cylindrical walk-behind auto scrubber built for tile, grout, and textured hard floors where a disc/pad machine can't reach into the surface. Twin cylindrical brushes deliver 4–6x the contact pressure of rotary scrubbers while using up to 30% less solution, cleaning up to 22,000 sq ft/hr at a LEED-qualifying 67 dB(A). Ships with a roto-molded polyethylene body backed by a 10-year tank/body warranty, on-board charger, and two 12V batteries.

Twin cylindrical brushes — 4–6x the contact pressure of rotary/disc scrubbers; deep-clean tile, grout, slate, paver brick and textured/non-slip floors a pad can't reach
Traction drive (self-propelled) — reduces operator fatigue over large runs
22" cleaning path, up to 22,000 sq ft/hr productivity
Uses ~30% less solution than comparable disc scrubbers; LEED-qualifying 67 dB(A) quiet operation
33" parabolic squeegee — ~100% solution recovery even on 180° turns; four-sided rear blade with quick-release for fast changeovers
Roto-molded polyethylene body + built-in vacuum-motor moisture protection; 10-year tank/body warranty
Clamshell design for easy battery + vac-motor service access; front-mounted drain hose for on-the-go dumping (no floor drain needed)
24V battery power with on-board charger included; Lead-Acid / AGM / TPPL battery options
Cylindrical brushes outlast rotary pads ~100:1 — one brush set per ~100 floor pads
Four optional brush grades (super-soft, soft, medium, hard-grit) tune aggression to any hard-floor surface

Configurations: 99695T-C is the wet-acid battery configuration. Base catalogue number 99695T; TPPL battery configuration 99695TE.

Receiving — do not sign clean

Weight (empty)223 lbsDimensions (L x W x H)50 x 24 x 42 in

Count the pieces against the bill of lading before the driver leaves. A machine, its batteries and its accessories can ship as separate items.
Walk the pallet. Check the shrink-wrap, the crate corners and the machine itself — forks go through crates more often than anyone admits.
Photograph any damage before you sign. Once the driver has your signature the photographs are worth much less.
Write the damage on the delivery receipt. A clean signature on a damaged pallet is what makes a freight claim hard. Then call 1-888-287-3732 the same day.

Full guide: how freight delivery works →

Field demonstration

MANUFACTURER DEMONSTRATION · TORNADO

Quick overview

22 in Cleaning Path
22,000 sq ft/hr Productivity
14 / 15 gal Solution / Recovery Tanks
900 RPM Brush Speed

CLEANING PRODUCTS

Janitori cleaning products are made in Canada. Confirm product compatibility with this machine before use.

Neutral cleaner (daily maintenance)Best everyday pairing. Run with the INCLUDED White Soft-Scrub brush (K57622970). On a cylindrical deck pad color does NOT apply — 'white/red pad' equivalent = the soft brush. Use a low-foam neutral floor cleaner (auto-scrubber-safe) diluted per label; no defoamer normally needed.
Degreaser (heavy soil / kitchens / industrial)Pair with the Medium (K57623480) or Hard-Grit (K57622990) brush for more bite (equivalent to blue/green pad aggression). MUST use a LOW-FOAM degreaser and add defoamer to the recovery tank — high-foam degreasers flood and can damage the 0.6 HP vacuum motor. Cylindrical action pulls degreaser into grout/texture better than a disc pad.
Stripper (floor-finish removal)Generally NOT recommended on this cylindrical machine — full finish stripping is a black-pad/swing-machine job. Strippers are high-foam and aggressive; a cylindrical deck can't apply flat black-pad stripping pressure. If used on textured/non-slip floors, run the Hard-Grit brush (K57622990) with heavy defoamer, dwell time, and expect touch-up. For VCT finish removal use a low-speed disc/swing machine with black pads instead.
Finish / sealer (floor finish application)Not applied by this machine — N/A. Floor finish/sealer goes down with a finish applicator or microfiber flat mop, not the scrubber. Keep finish chemistry out of the solution tank.
Low-foam note (all chemistry)This is an auto scrubber — always use LOW-FOAM formulations. Foam carries into the recovery tank and can reach/damage the vacuum motor. For any degreaser or stripper application, dose a commercial low-foam defoamer concentrate into the recovery tank per its label as a standing rule.

Need help choosing?

Talk to our equipment desk about floor type, square footage, pads and cleaning-product compatibility.

1-888-287-3732 Available 24/7 Request a commercial quote →

Complete your setup

This machine runs on Janitori commercial-grade chemistry — machine and solution from one supplier, one reorder. Stock the essentials with your unit.

Floor Cleaner JANITORI™ - No.61 $41.95

Degreaser JANITORI™ - No.71 $42.95

Degreaser MAX JANITORI™ - No.72 $47.95

All-Purpose Cleaner JANITORI™ – No.03 $31.95

Surface Disinfectant JANITORI™ - No.08 $25.95

iSHINE JANITORI™ - No.09 $19.95

Browse the full Janitori chemistry line →

Replacement parts & consumables

Wear parts and consumables matched to this machine. Stock them with the unit; reorder by part number.

K57622970 White Soft-Scrub Cylindrical Brush (INCLUDED standard; daily maintenance / neutral cleaning) $238.99

K57623480 Medium Scrub Cylindrical Brush (general-purpose / moderate soil) $165.99

K57622990 Hard-Grit Roller Cylindrical Brush (heavy soil / aggressive scrubbing / textured & non-slip) $415.99

48402010 Standard Rear Squeegee Blade (four-sided quick-release) $54.99

48402020 Standard Front Squeegee Blade $40.99

48402070 Rear Oil-Resistant Squeegee Blade (for oily/greasy floors) $156.99

99812 12V Battery x2 (24V system) — Wet/Lead-Acid (#99812), AGM (#99559), or TPPL (#NXS120) per config $1,218.99

Why buy from Janitori

CANADA-BASED BUSINESSJanitori is located in Canada and sells commercial equipment to customers in the USA.

MODEL DOCUMENTATIONReview the published specifications and documents for the exact machine before ordering.

CANADIAN CLEANING PRODUCTSJanitori cleaning products are made in Canada. Equipment origin varies by manufacturer.

FREE FREIGHTIncluded at checkout on every US equipment order — any US address, no order minimum.

MACHINE + CHEMISTRY, ONE SUPPLIERBuy the machine and the Canadian-made cleaning products it runs on from the same supplier.

DIRECT EQUIPMENT DESKCall during published hours for help matching a machine to the application.

Commercial & fleet orders

Gyms, schools, facilities, property managers, government. Tell us your purchasing process, quantity and timeline. Ask about PO or net-terms eligibility; approval is not guaranteed.

Get a commercial quote Wholesale program →

Questions, answered

What training is required to run this machine?

Follow the manufacturer operator manual and your workplace's required training and safety procedures before use.

How does freight delivery actually work?

Delivery method and services depend on the order and destination. Confirm the shipment plan before ordering. Full guide: how freight delivery works.

What happens if it arrives damaged?

Note the damage on the delivery receipt, take photos, and contact us promptly so we can confirm the process applicable to that shipment.

Where can I find warranty information?

Use the warranty document published for this exact model, when present, and contact us with questions before ordering.

Can my organization request purchase-order terms?

Use the commercial quote form to describe your PO or net-terms process. We will confirm whether the requested process can be supported.

Which pads and cleaning products should I use?

Use only verified product references and the manufacturer's compatibility requirements. Contact the equipment desk with your floor type and application before substituting a product.

Product specifications

Model / Item #: BR 22/14T — 99695T-C (wet-acid); 99695TE (TPPL)
Cleaning Path: 22 in (56 cm)
Brush Type: Cylindrical (twin counter-rotating brushes) — NOT a pad/disc deck
Brush Width: 22 in
Brush Speed: 900 RPM (mfr spec table)
Brush Pressure: 79 lbs (adjustable; 4–6x contact pressure vs rotary)
Productivity: 22,000 sq ft/hr
Solution Tank: 14 gal
Recovery Tank: 15 gal
Tank Construction: Roto-molded polyethylene
Squeegee: 33 in wide parabolic squeegee; four-sided rear blade w/ quick-release lever, ~100% recovery on 180° turns
Vacuum Motor: 0.6 HP (~400 W)
Brush Motor: 0.6 HP (~550 W)
Drive System: Traction drive (self-propelled)
Voltage: 24 V (two 12 V batteries in series)
Batteries (std -C config): 2 x 12 V wet/lead-acid, 185–195 Ah; AGM (~230 Ah) and TPPL options available
On-Board Charger: Yes (included)
Sound Level: 67 dB(A) — LEED-qualifying
Weight (empty): 223 lbs
Dimensions (L x W x H): 50 x 24 x 42 in
Solution Savings: ~30% less solution than comparable disc scrubbers
Warranty: 10 yr tanks/roto-molded body, 2 yr parts, 1 yr labor (authorized service center), 1 yr prorated batteries (via battery mfr)
Included Items: 2x White Soft-Scrub cylindrical brushes (K57622970), on-board charger, two 12V batteries (in -C config)
Best-fit floors: Tile & grout, slate, paver brick, non-slip/textured, sealed & polished concrete, epoxy, rubber, vinyl

Documents

D·01 BR 22/14T Operations & Maintenance Manual (L9695TMAA, EN/ES/FR) — manufacturer-hosted; also contains the Tornado limited-warranty statement PDF ↧ D·02 BR 22/14 Cylindrical Scrubber Spec Sheet (Item 99695T) — manufacturer-hosted PDF ↧ D·03 Tornado Long Term Buyer Protection Limited Warranty — published inside the operations manual (10 yr plastic tanks/roto-molded body, 2 yr parts, 1 yr labor, 1 yr prorated batteries); see the warranty page of the manual PDF ↧
